Dahua

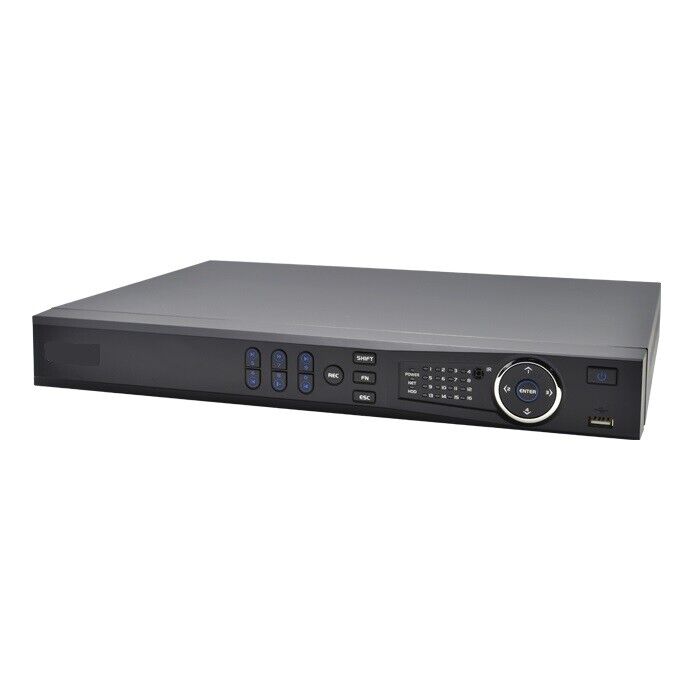

Videoregistratore dvr xvr IBRIDO 5IN1 HDCVI AHD HDTVI CVBS IP 8 CH 4K P2P

Videoregistratore dvr xvr IBRIDO 5IN1 HDCVI AHD HDTVI CVBS IP 8 CH 4K P2P

€219,00
€219,00
Sale Sold out
Tax included. Shipping calculated at checkout.

Modello: XVR5208AN-4KL

Tecnologia di sorveglianza: AHD

Marca: Dahua

Tipo: DVR

Contattaci per l'acquisto di quantità maggiori rispetto alla disponibilità.

Caratteristiche del prodotto:

  • Registra 8 canali fino a 8,0 MP (3840 x 2160) a 7 fps
  • Supporto per ingressi video HDCVI, analogici e IP
  • Distanza di trasmissione video fino a 700 m su cavo coassiale
  • 2 porte SATA fino a 10 TB, capacità HDD massima di 20 TB
  • Configura la visualizzazione remota iOS / Android in pochi secondi tramite codice QR
  • HDMI (fino a 4K, 3840 x 2160) e uscita video simultanea VGA
  • Backup tramite dispositivo USB esterno o rete locale
  • La ventola intelligente silenziosa si regola automaticamente con la temperatura della CPU


Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
8 channel BNC
Audio In/Out
1 channel input / 1 channel output
Two-way Talk
Reuse channel 1 audio input/output
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
USB Interface
2 ports: 1x USB2.0, 1x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC/4A
Power Consumption
<15W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH / 86~106kpa
Dimensions
375mm x 285mm x 55mm (1U)
Rackmountable
No
Rackmount Unit
1RU
Weight
2.35kg (without HDD)
Cross Compatibility
Supported Video Inputs
Coax Input Support
IP Input Support
IP Input Max. Resolution
IP Input Max. Bandwidth
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~7fps) / 5.0MP (1~12fps) / 4.0MP & 3.0MP (1~15fps) / 1080p (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.264+ / H.264
Bit Rate
1~6144Kbps per channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
N/A
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 x 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9
Search Modes
Time/Date; Alarm, Motion detection; Exact search (to the second)
Intelligent Functions
Face Detection, Tripwire, Abandoned/Missing Object
Backup Modes
USB Device / Internal SATA burner / Network
Network
Ethernet
1x RJ-45 port (1000M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Other
Camera Configurations
Coaxial: 8 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue) / Network: Add 4 channels up to 8.0MP Max 48Mbps Incoming Bandwidth
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
435 mm
Depth
360 mm
Weight
3.40 kg
