Caratteristiche della telecamera:
• Stream 4.0MP (2560 x 1440)
• Obiettivo fisso da 3,6 mm; Angolo di visione di 79°
• Trasmissione video fino a 700 m su cavo coassiale
• Illuminazione a infrarossi fino a 50 m
• Classificazione IP67 per la resistenza agli agenti atmosferici
• Doppia uscita BNC per video composito e HDCVI
• True WDR (120dB) e riduzione del rumore 2D/3D
• Dimensioni compatte con montaggio triasse
• Materiale rivestimento: metallo
Compatibilità: doppia uscita video BNC per HDCVI o analogica.
Configurazione della modalità analogica tramite OSD utilizzando DVR o tester HDCVI.
IMPORTANTE:
dopo l'acquisto comunicare codice fiscale per la fatturazione
elettronica, GRAZIE.
General
Image Sensor
1/3” 4.1 Megapixel CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
3.6mm F1.5 Fixed Lens
Lens Type
Fixed
Angle of View
79°
Focus
Fixed / 1.5m Min. Focus Distance
Minimum Illumination
0.01 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4 ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
50m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
80m
Observe (63px/m)
32m
Recognise (125px/m)
16m
Identify (250px/m)
8m
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate
25fps (4.0MP), 25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
2 x BNC video output (1 x HDCVI / 1 x Composite SD)
Modes Supported
Mode Switching
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Metal
Camera Type
Dome
Tri-Axis Mounting
Yes
Power Input
12VDC
Power Consumption
< 5.3W

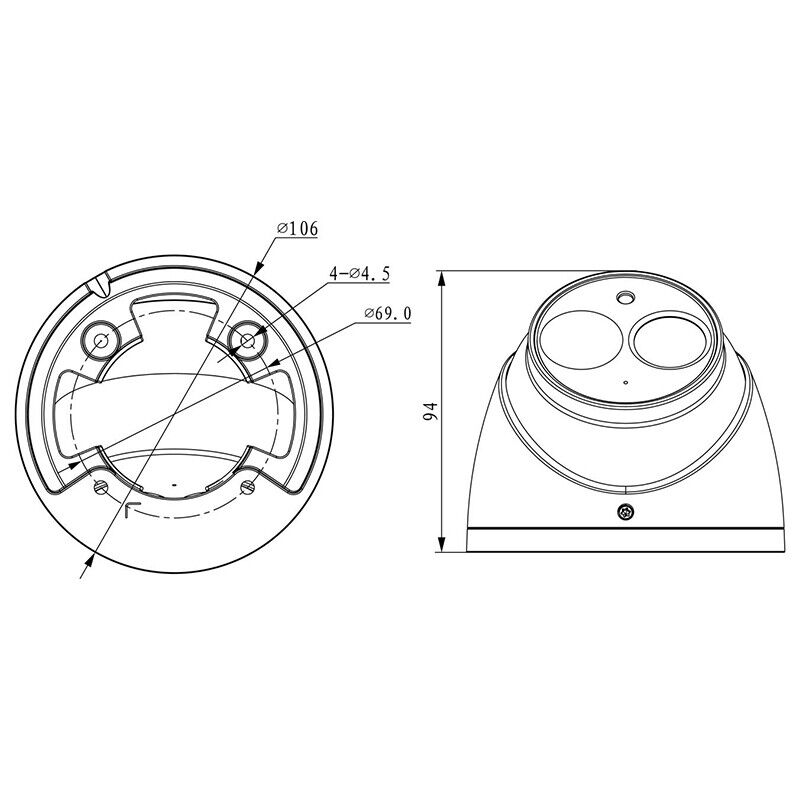

Dimensions
Ø106 x 94mm
Weight
0.44kg
Operating Environment
-30° to 60°C / RH90% (max)
Other
Analogue Support
Yes (Dual output)
Warranty (Years)
4
